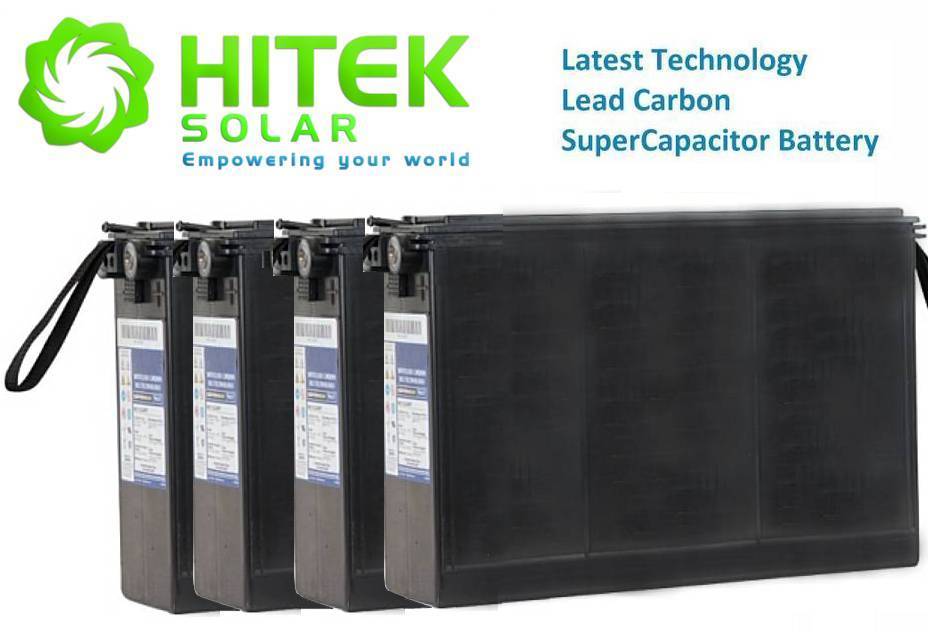

New 48v 9.6kWh Latest Technology Lead Carbon SuperCapacitor Pb-C Deep Cycle Battery set (front terminal style).

Note: Currently out of stock, not available at the current time.

This battery set includes 4 x 12v 200Ah Lead Carbon batteries, but does NOT include any link cables, or any battery rack etc (just the bare batteries).

Specs:
48v 200Ah (100% Usable)
172Ah @ C10 Rating
189Ah @ C20 Rating
200Ah @ C48 Rating
205Ah @ C100 Rating
Weight: 60Kg (per battery) 240Kg for this battery set.
Size: 560mm long x 126mm width / deep x 328mm height (per battery).
Max charge current: 48v 90A
Constant charge current: 48v 70A
Terminal: M8 copper
Technology: AGM VRLA Pb-C Lead Carbon.

Depth of Discharge (DOD) cycle count for our Lead Carbon SuperCapacitor (LCS) batteries:

650 cycles at 100% Discharge capacity
1000 cycles at 80% Discharge capacity
2250 cycles at 50% Discharge capacity

What makes this battery so advanced & much better than typical deep cycle batteries available?

Most "Deep Cycle" batteries are rated to be used between 20-50% DOD (Depth of Discharge) & if you run the battery does to 100% DOD (eg fully flat) then the battery will soon fail.
With a normal deep cycle battery they will usually give 100 cycles at 100% DOD & 500 cycles at 50% DOD.

This latest technology battery is different in that it will give 2250+ cycles at 50% DOD.

A deep cycle Lead Acid, AGM or GEL battery (in fact even your average car, truck, fork lift or solar battery) all end up failing due to sulphation. This is not possible to avoiding with traditional lead acid batteries (even sealed ones), instead our latest battery uses a lead positive plate and a carbon nano-style negative plate that does NOT suffer from the same sulphation problems that existing batteries suffer from.

A normal battery has a typical rated design life of up to around 3-5 years, however this battery has a rated max design life of up to 15 years, so typically this battery will last you around 200-300% more cycles than typical existing deep cycle lead acid, flooded, agm or gel batteries.

A great value for money battery storage set for on-grid hybrid or off-grid solar power storage use.

Please read our detailed Blog Post Here which tells you the advantages of our lead-carbon batteries compared against Lithium, Lead Acid and Gel batteries.

You can read a great short independant article about this technology and HOW IT COMPARES against existing Lead Acid, Gel and AGM technology here.

We have other larger Lead Carbon SuperCapacitor solar storage battery options available offering 14.4kWh & 28.8kWh, if you are interested please contact us for more info.

This battery technology is very similar to the Ecoult Ultrabattery (Ultra Capacitor) technology in that they're both built using Lead Carbon battery technology, except at a more affordable price and in smaller capacities which better suit NZ solar storage usage.
